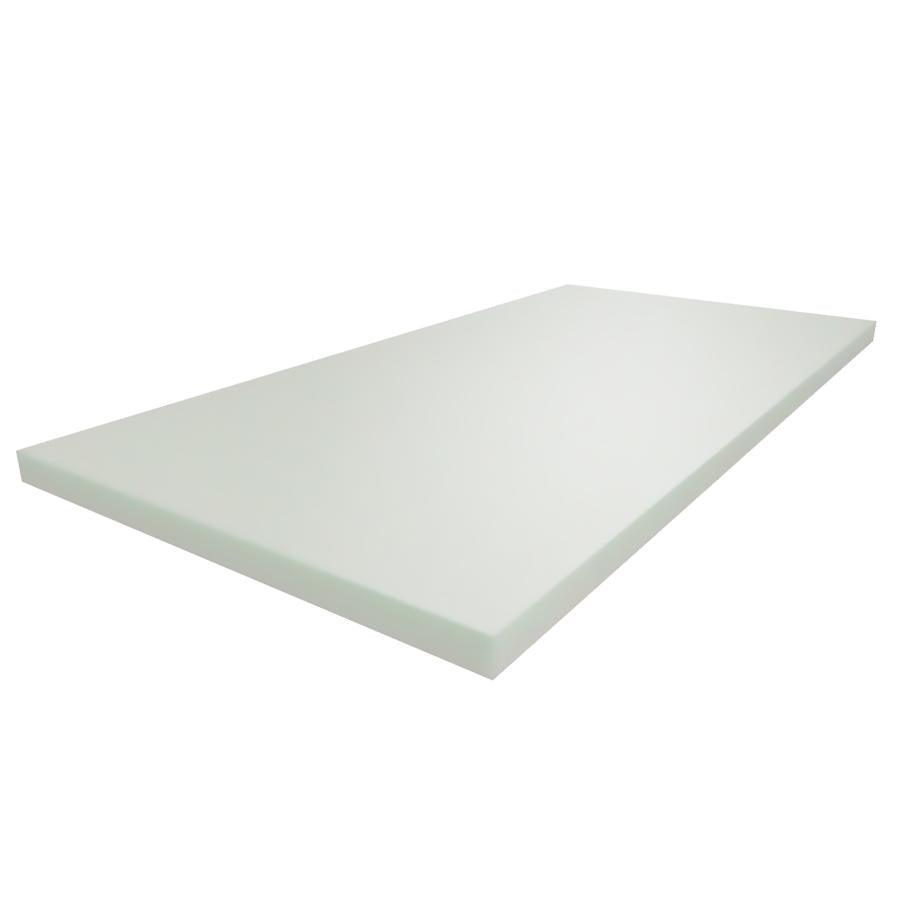

PVDF (Kynar) Natural Unfilled Sheet/Plate

SKU: PVFSHT500100010
Regular price €1.995,28 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Need Help?

Our team are always happy to help!

Live Chat: Available from the bottom right of your screen.

Email: thesalesteam@highperformancepolymer.co.uk

Phone: 01865 684080

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Material: PVDF

Measurement System: Metric

Colour: Natural/Opaque

Continuous use temperature: 150°C/302°F

Flammability: UL94 V-0

Unfilled PVDF Natural Sheet/Plate:

Is the size you require not offered? We provide PVDF sheet in any size, get in touch for a quote.

Material Overview: Polyvinylidene fluoride (PVDF) is a high-performance engineering thermoplastic known for its exceptional properties. PVDF Natural Sheet, a versatile form of PVDF, is celebrated for its excellent chemical resistance, mechanical strength, and exceptional stability across a wide range of conditions.

Key Technical Properties:

1. Outstanding Chemical Resistance: PVDF Natural Sheet exhibits unparalleled chemical resistance, making it highly resistant to a wide range of corrosive chemicals, including acids, bases, and organic solvents. It is an ideal choice for applications exposed to aggressive chemical environments.

2. High Mechanical Strength: PVDF offers excellent tensile strength and rigidity, providing exceptional mechanical performance. This material maintains its structural integrity under various loads, ensuring long-lasting durability in critical applications.

3. UV and Weather Resistance: PVDF Natural Sheet is inherently resistant to ultraviolet (UV) radiation and weathering, making it suitable for outdoor applications. It retains its mechanical and chemical properties even when exposed to harsh environmental conditions.

4. Thermal Stability: PVDF can withstand temperatures ranging from -40°C to 150°C (-40°F to 302°F) in continuous service. Its thermal stability ensures reliable performance in applications subject to varying temperature extremes.

5. Low Water Absorption: PVDF exhibits low water absorption, ensuring dimensional stability even in the presence of moisture. This property is essential for maintaining consistent performance in humid or wet environments.

6. Electrical Insulation: PVDF is an excellent electrical insulator with high dielectric strength, making it suitable for electrical and electronic applications, including cable insulation, connectors, and semiconductor components.

7. FDA Compliance: PVDF Natural Sheet complies with FDA regulations, making it suitable for use in food-contact applications. It meets stringent requirements for safety and hygiene in food processing and packaging industries.

Applications: PVDF Natural Sheet is utilized in a wide range of industries and applications, including:

  • Chemical Processing: Lining materials, pipes, and tanks for handling corrosive chemicals.
  • Aerospace: Aircraft components, fuel systems, and interior applications.
  • Electrical and Electronics: Cable insulation, connectors, and electronic housings.
  • Renewable Energy: Solar panel components, wind turbine parts, and battery enclosures.
  • Construction: Architectural cladding, roofing, and exterior building components.

The PVDF data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PVDF (Kynar) Natural Unfilled Sheet/Plate

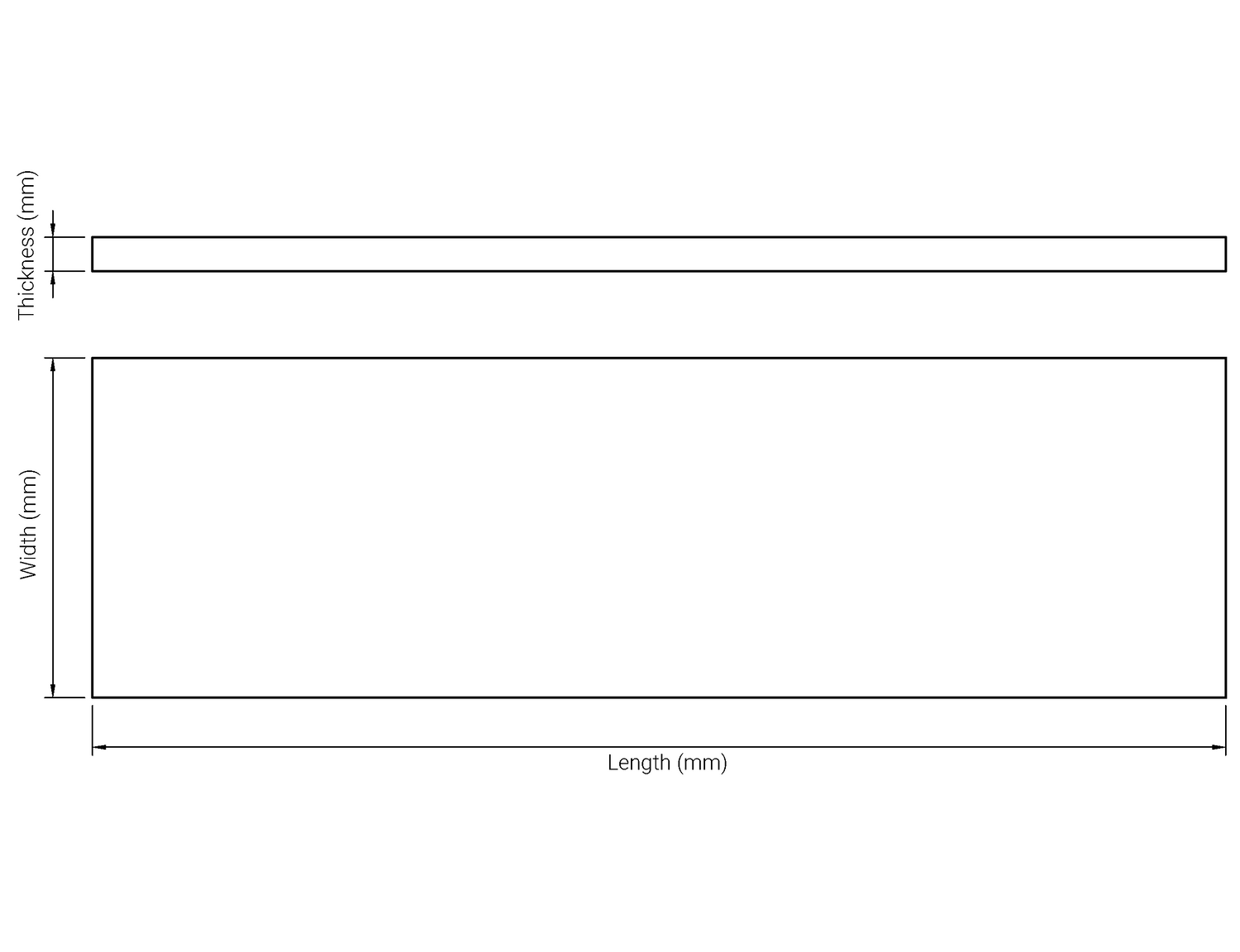

Product Drawing

Polyvinylidene fluoride (PVDF) Datasheet

Follow the link below to view our PVDF data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PVDF Key Properties

  • Exceptional chemical resistance- PVDF is not affected by most chemicals, for further info please see our datasheet below.

    Low Water absorption rates - 0.030% at 23˚c - Great for exterior use.

    Temperature resistance - 150˚C continuous use.

    Flame resistance - UL94 - V0.

  • - Ultra low weight

    - Abrasion resistance

    - Hydrolysis resistance

    - Exceptional insulation properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High Purity

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.
