RENY Countersunk Flat Head Screws - DIN 965

868 In Stock
SKU: RNYCK206
Regular price €0,15 - €0,23 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €0,23
500 pcs €0,22
1000 pcs €0,21
2500 pcs €0,18
5000 pcs €0,17
10000 pcs €0,16
20000 pcs €0,15
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: RENY

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: White

Continuous use temperature: 105°C/221°F

Flammability: UL94 HB

RENY Countersunk Flat Head Screws - DIN 965 conform to the following Standards/Norms:

ISO 7046

DIN 965

CSN 021152

PN 82208

UNI 7688

All our RENY countersunk (also known as Flat Head) screws featured comply with DIN 965 specification.

HPP’s Countersunk screws are manufactured with a standard Phillips cross head drive type (ranging from drive #1 to #3), this allows for more than adequate torque for the fastener specification.

The standard head angle for all our countersunk screws is 90 Degrees.

Our RENY countersunk screws are commonly used within any application where ultra-high tensile strength is needed.

Certificate of conformity available on request.

Please find a link to our data sheet below.

What are RENY Countersunk Screws

RENY countersunk screws, also known as counterbore screws, are screws with a conical head that is flush with the surface of the material into which it is installed. They are typically used to fasten two pieces of material together in a way that allows the head of the screw to be hidden or recessed below the surface of the material. This can give a more aesthetically pleasing appearance and can also prevent the screw head from snagging on clothing or other objects.

Countersunk screws are usually installed using a drill or screwdriver and are tightened until the head of the screw is flush with the surface of the material. They are typically made of steel or other strong, durable materials and are available in a range of sizes and thread types to suit different applications.

RENY is a brand of countersunk screws and other fasteners that is known for producing high-quality products for a variety of applications. They offer a wide range of sizes and styles of countersunk screws to suit different needs, and their products are used in a variety of industries, including construction, manufacturing, and automotive.

The RENY data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

RENY Countersunk Flat Head Screws - DIN 965

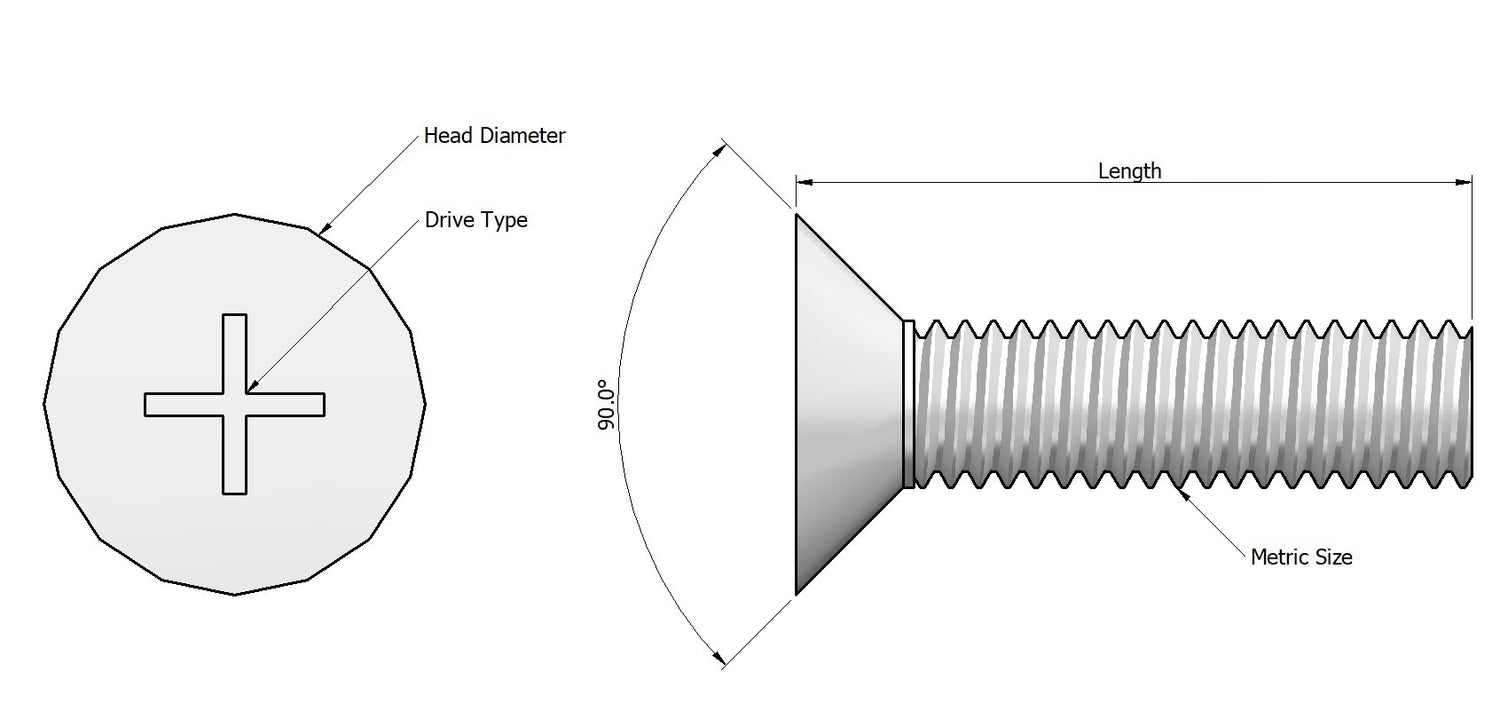

Product Drawing

Countersunk/Flathead Screw Dimension Table (ISO 7046/DIN 965)
M Size Pitch (mm) Head Diameter (mm)
M2 0.4 4.0
M2.5 0.45 5.0
M2.6 0.45 5.2
M3 0.5 6.0
M4 0.7 8.0
M5 0.8 10.0
M6 1.0 12.0
M8 1.25 16.0

Dimension Table

Dimensions for RENY Countersunk Flat Head Screws - DIN 965 in all available sizes are shown according to the product drawing above.

Key RENY MXD6 - 50% Glass Fibre Reinforced Nylon Properties

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datasheet

Follow the link below to view our RENY data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

RENY Key Properties

  • High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

    Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

    Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

    Excellent weight to strength ratio - Specific gravity (1.65).

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High heat operation (105°C)

    - Ultra low weight

  • - Flame resistance (UL94 HB)

    - Hydrolysis resistance

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.

Highly Competitive Prices

We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
