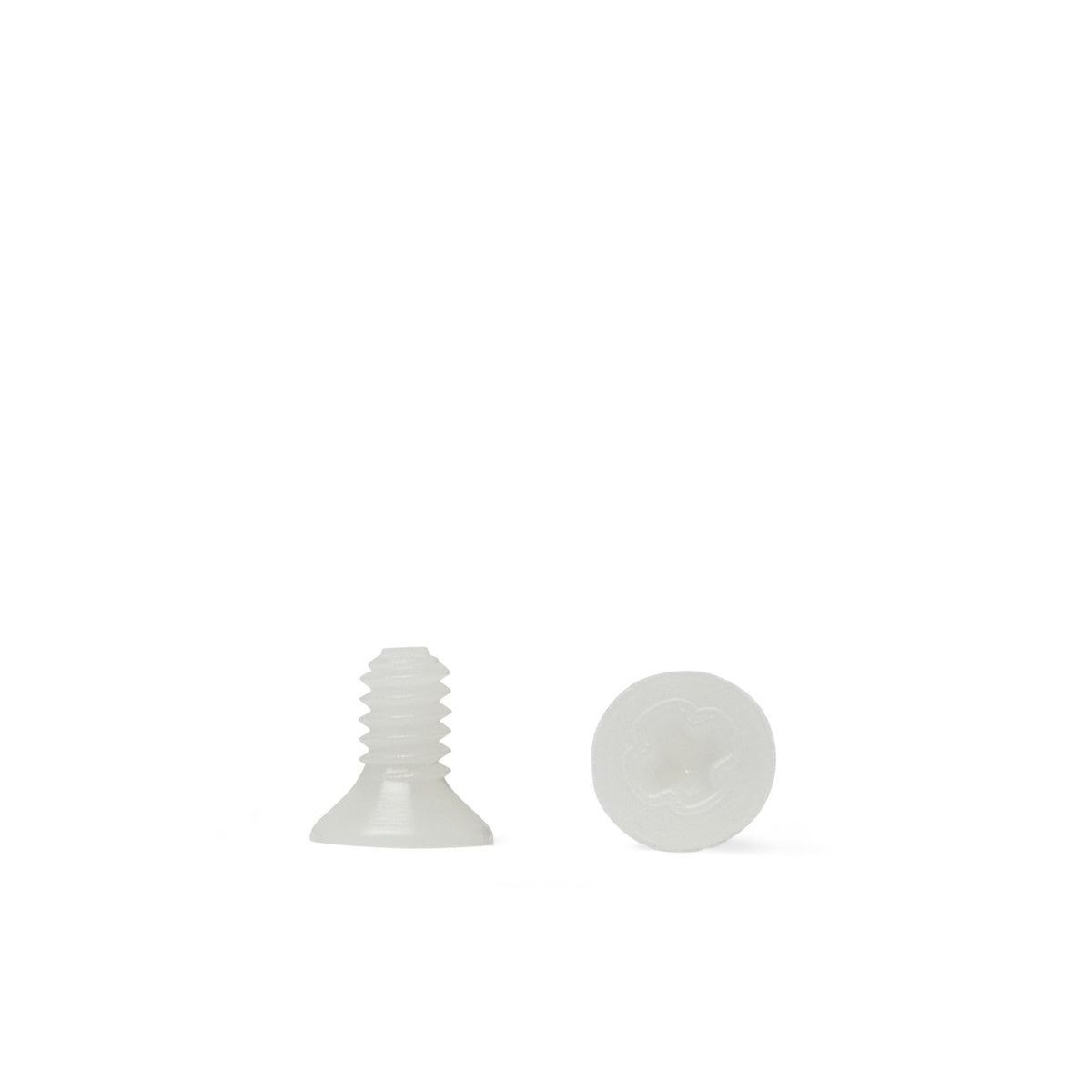

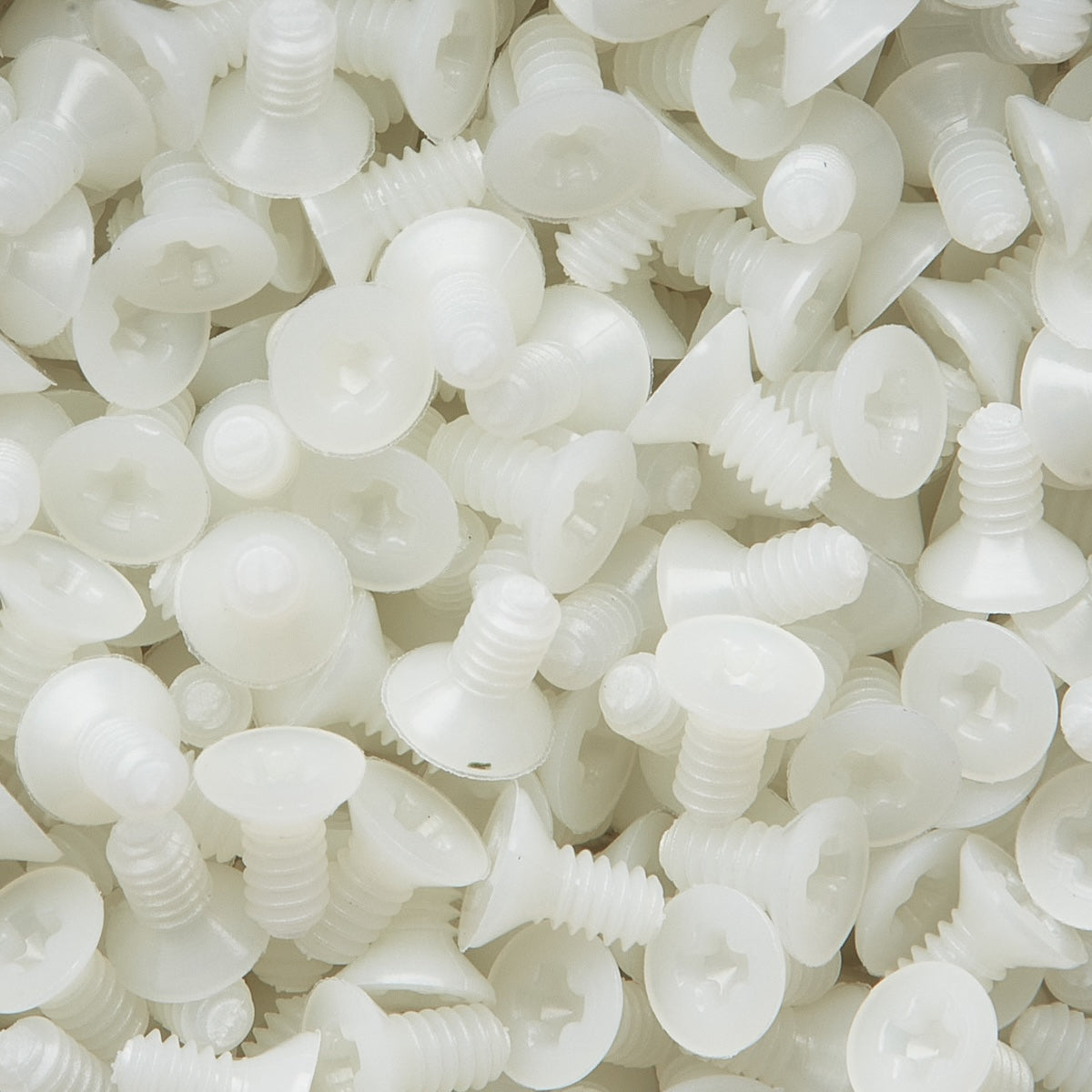

RENY Micro Countersunk Flat Head Screws - DIN 965

1320 In Stock
SKU: RNYMCK1225
Regular price €0,71 - €1,09 EUR / each Ex. VAT

Volume Discounts Available:

1 pc €1,09
500 pcs €1,04
1000 pcs €0,98
2500 pcs €0,87
5000 pcs €0,82
10000 pcs €0,76
20000 pcs €0,71
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: RENY

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: White

Continuous use temperature: 105°C/221°F

Flammability: UL94 HB

RENY Micro Countersunk Flat Head Screws - DIN 965 conform to the following Standards/Norms:

DIN 965

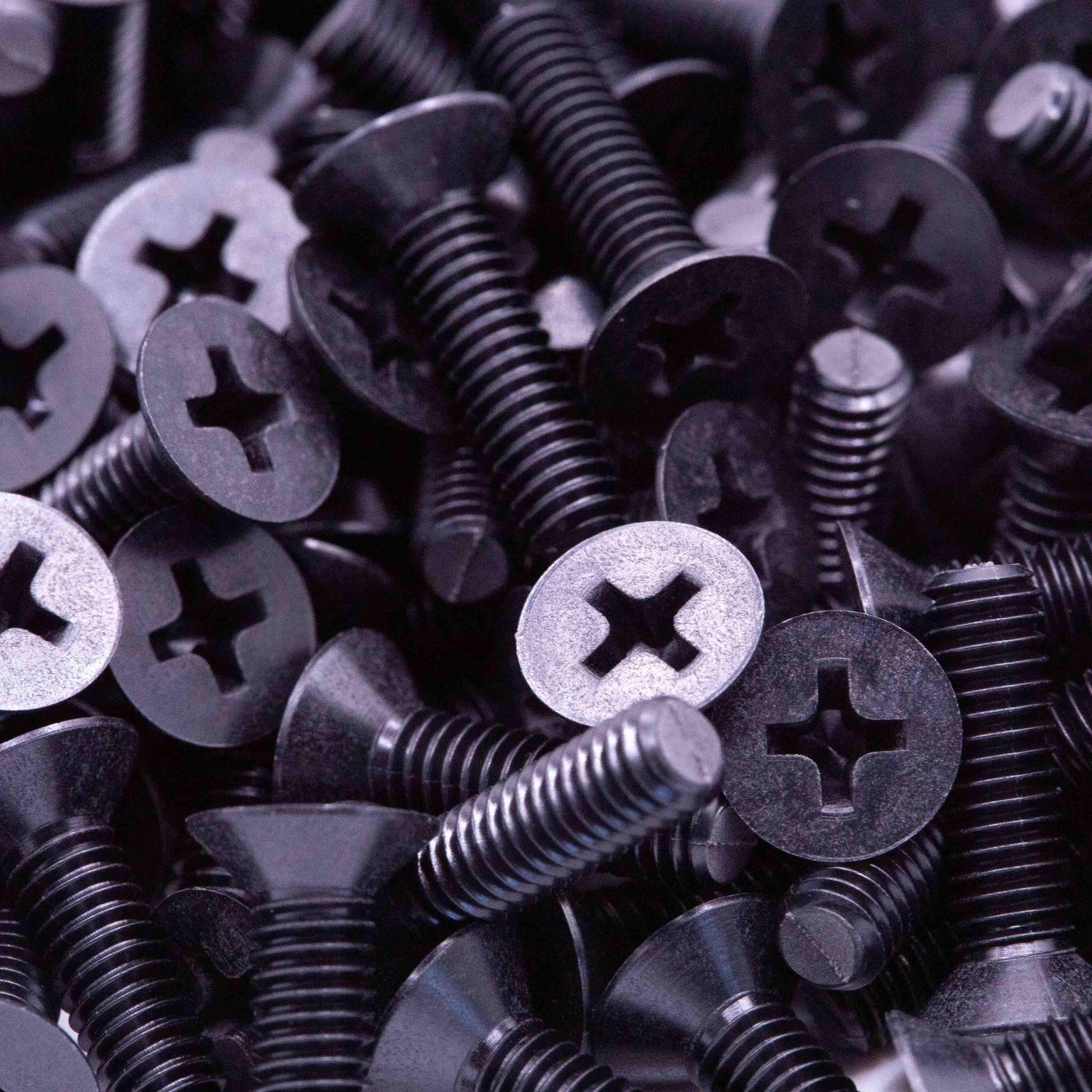

RENY Micro countersunk (also known as Flat Head) screws are available in ‘micro’ sizes ranging from M1.2 to M1.6 and lengths 2.5mm to 4mm.

Micro countersunk screws are manufactured with a standard Phillips cross head drive type this allows for more than adequate torque for the fastener specification.

The standard head angle for all our countersunk screws is 90 Degrees.

Our countersunk screws are commonly used within the electronics sector due to being available in very small sizes.

Certificate of conformity available on request.

RENY Micro Countersunk Screws are a type of fastener made from RENY material, a high-performance engineering thermoplastic. The countersunk design of these screws allows them to be flush-mounted with the surface of the material they are fastened to, providing a clean and streamlined appearance.

One of the key advantages of RENY Micro Countersunk Screws is their high mechanical strength and stiffness. RENY is known for its excellent mechanical properties, including high tensile strength and stiffness, which make it ideal for use in high-load applications such as the automotive and aerospace industries.

In addition to their mechanical properties, RENY Micro Countersunk Screws also offer excellent chemical resistance. They can withstand exposure to a wide range of chemicals, including acids, bases, and solvents, making them ideal for use in harsh chemical environments such as chemical processing plants and laboratory equipment.

Another important advantage of RENY Micro Countersunk Screws is their low-profile design. The countersunk head allows them to be flush-mounted with the surface of the material they are fastened to, providing a clean and streamlined appearance. This makes them ideal for use in applications where aesthetics are important, such as in the manufacturing of consumer electronics or high-end machinery.

RENY Micro Countersunk Screws are available in a range of sizes and thread types to suit a variety of applications. They are commonly used in the automotive and aerospace industries, as well as in the manufacturing of electronic devices, medical equipment, and laboratory instruments.

In conclusion, RENY Micro Countersunk Screws offer several advantages over traditional fastener designs in terms of mechanical strength, chemical resistance, and low-profile design. Their unique countersunk head design and RENY material make them ideal for use in high-load and harsh chemical environments, as well as in applications where aesthetics are important.

The RENY data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

RENY Micro Countersunk Flat Head Screws - DIN 965

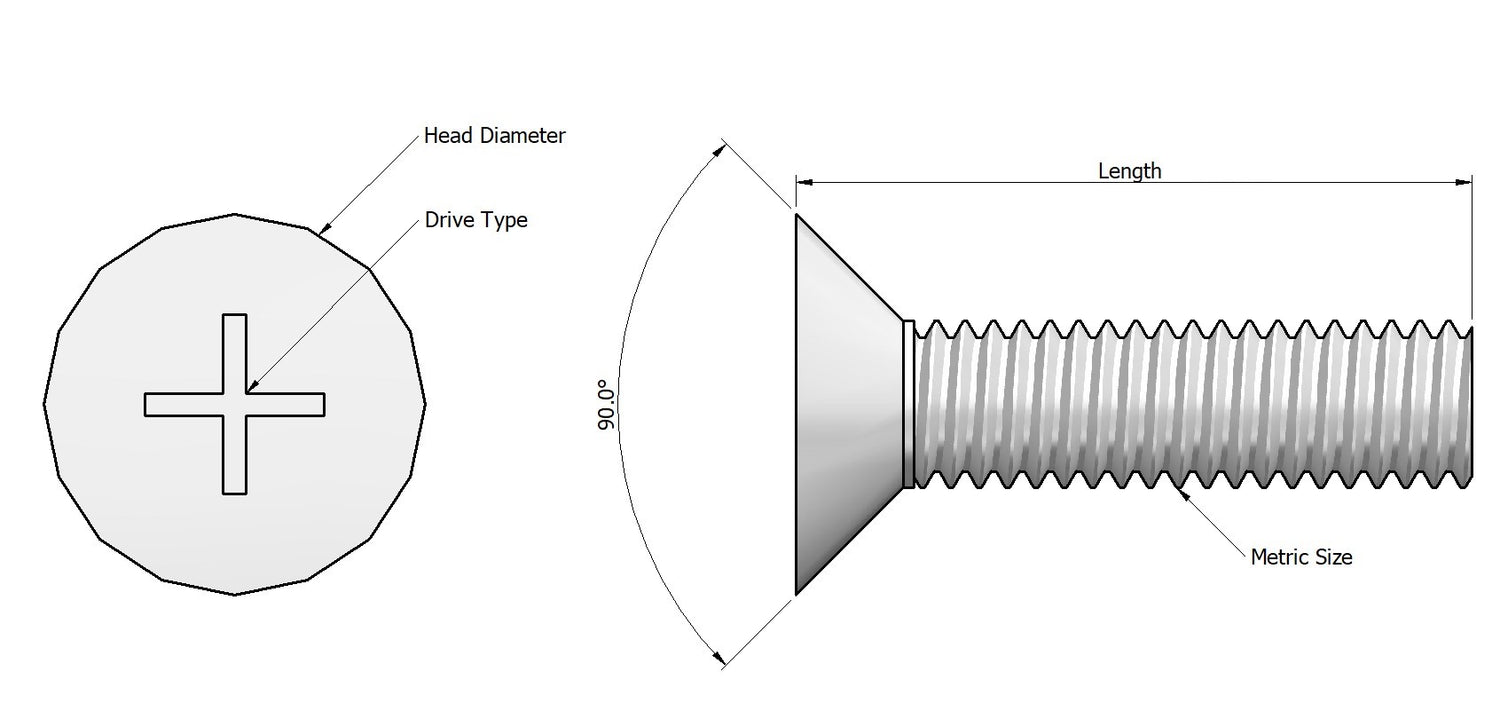

Product Drawing

Micro Countersunk/Flathead Screw Dimension Table
M Size Pitch (mm) Head Diameter (mm)
M1.2 0.25 2.3
M1.4 0.3 2.5
M1.6 0.35 2.8

Dimension Table

Dimensions for RENY Micro Countersunk Flat Head Screws - DIN 965 in all available sizes are shown according to the product drawing above.

Key RENY MXD6 - 50% Glass Fibre Reinforced Nylon Properties

RENY Countersunk Flat Head Screws - High Performance Polymer-Plastic Fastener Components

RENY MXD6 - 50% Glass Fibre Reinforced Nylon Datasheet

Follow the link below to view our RENY data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

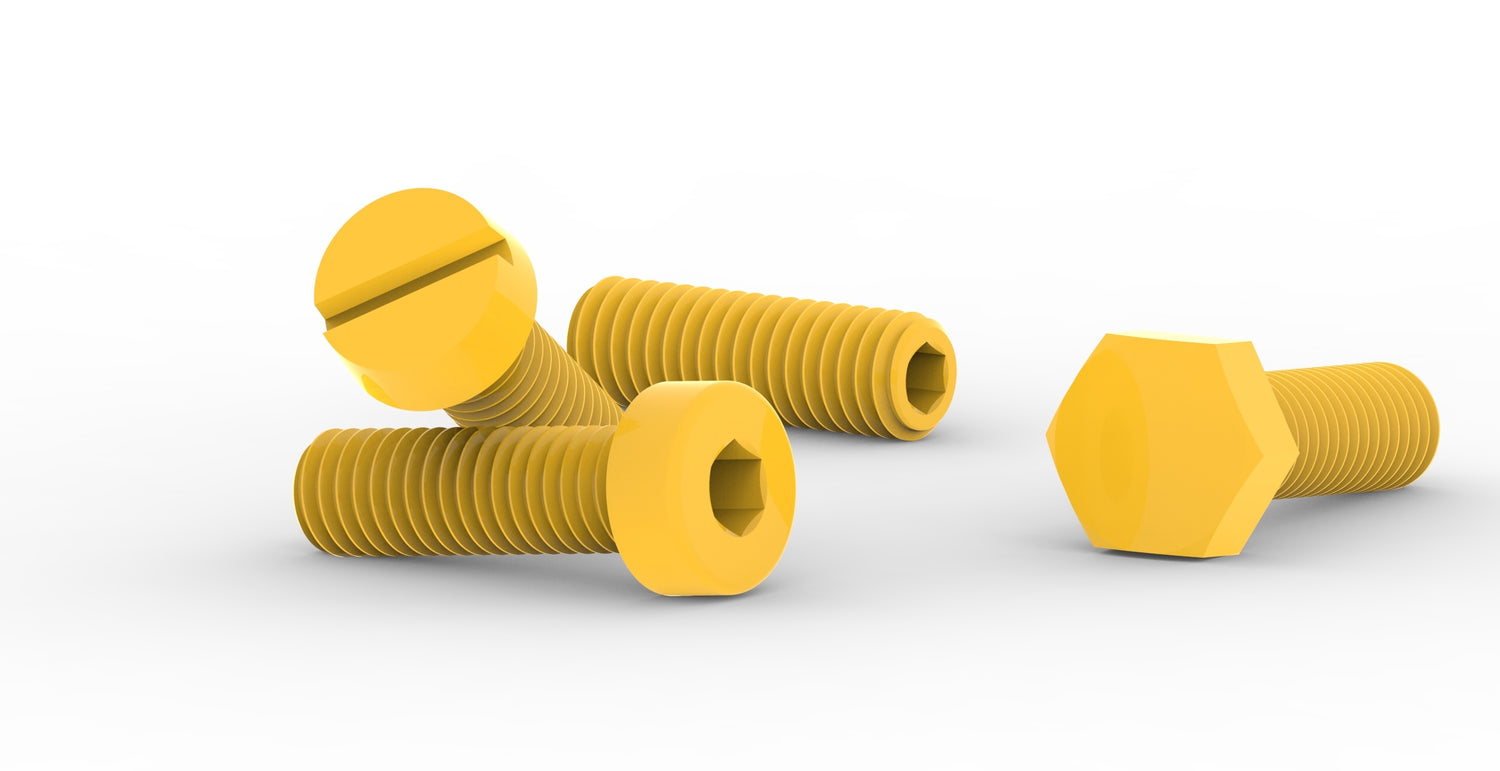

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

RENY Key Properties

  • High Tensile Strength – RENY is among the highest performing polymer screws in terms of tensile strength on the market today (285Mpa).

    Low cost - In comparison to other engineered polymer, such as PPS, PI and PEEK.

    Low water absorption – especially when compared to Nylon 6/6, this allows dimensional stability and mechanical strength to remain high even under high water absorption environments.

    Excellent weight to strength ratio - Specific gravity (1.65).

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - High heat operation (105°C)

    - Ultra low weight

  • - Flame resistance (UL94 HB)

    - Hydrolysis resistance
