Material: PA6

Measurement System: Metric

Colour: Clear/Opaque

Continuous use temperature: 80°C Maximum temperature: 150°C

Flammability UL94 HB-5VA

Polyamide PA6 (Nylon) Rosette Washer - DIN 125 A conform to the following Standards/Norms:

DIN 125 A

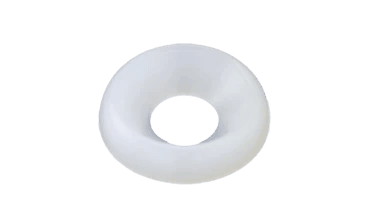

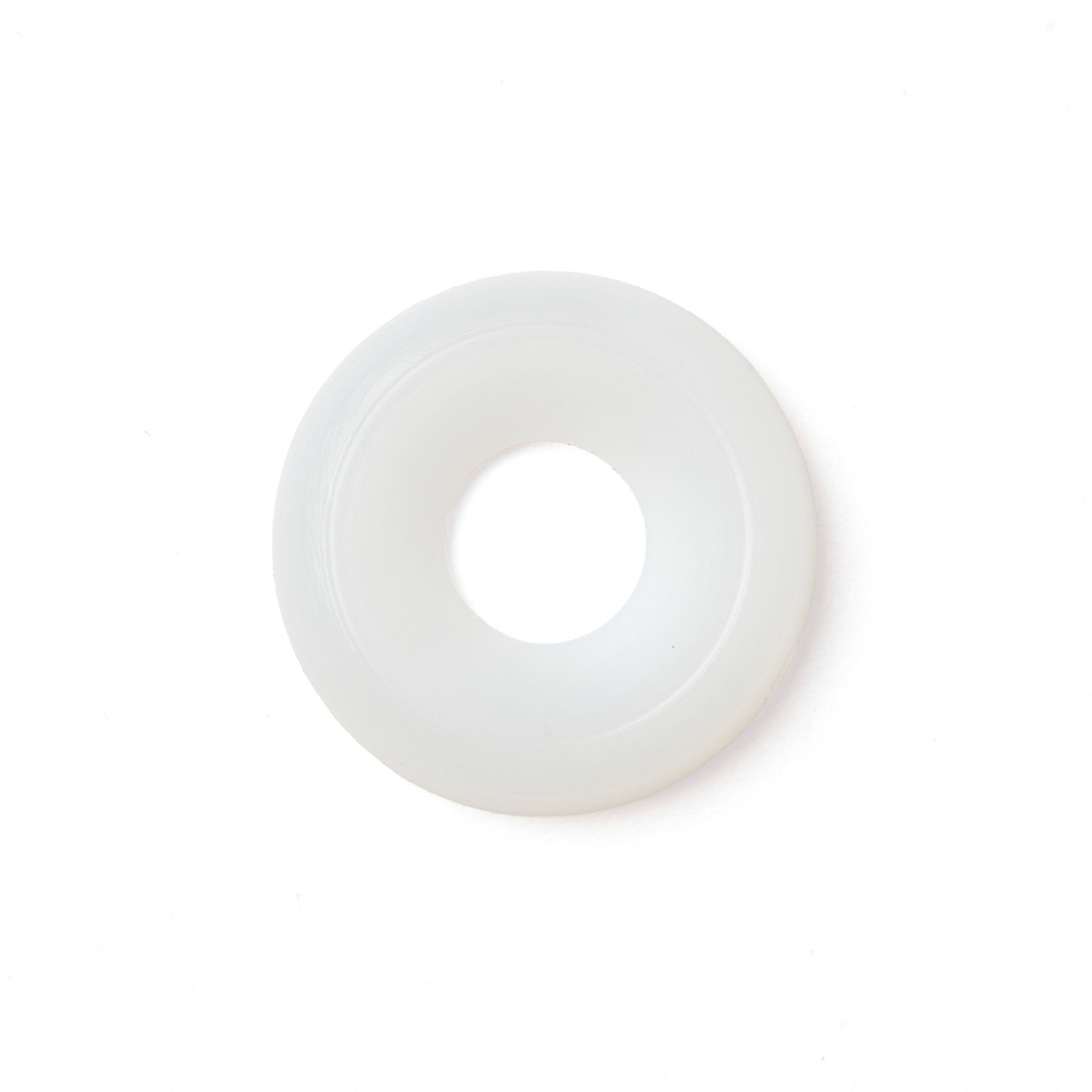

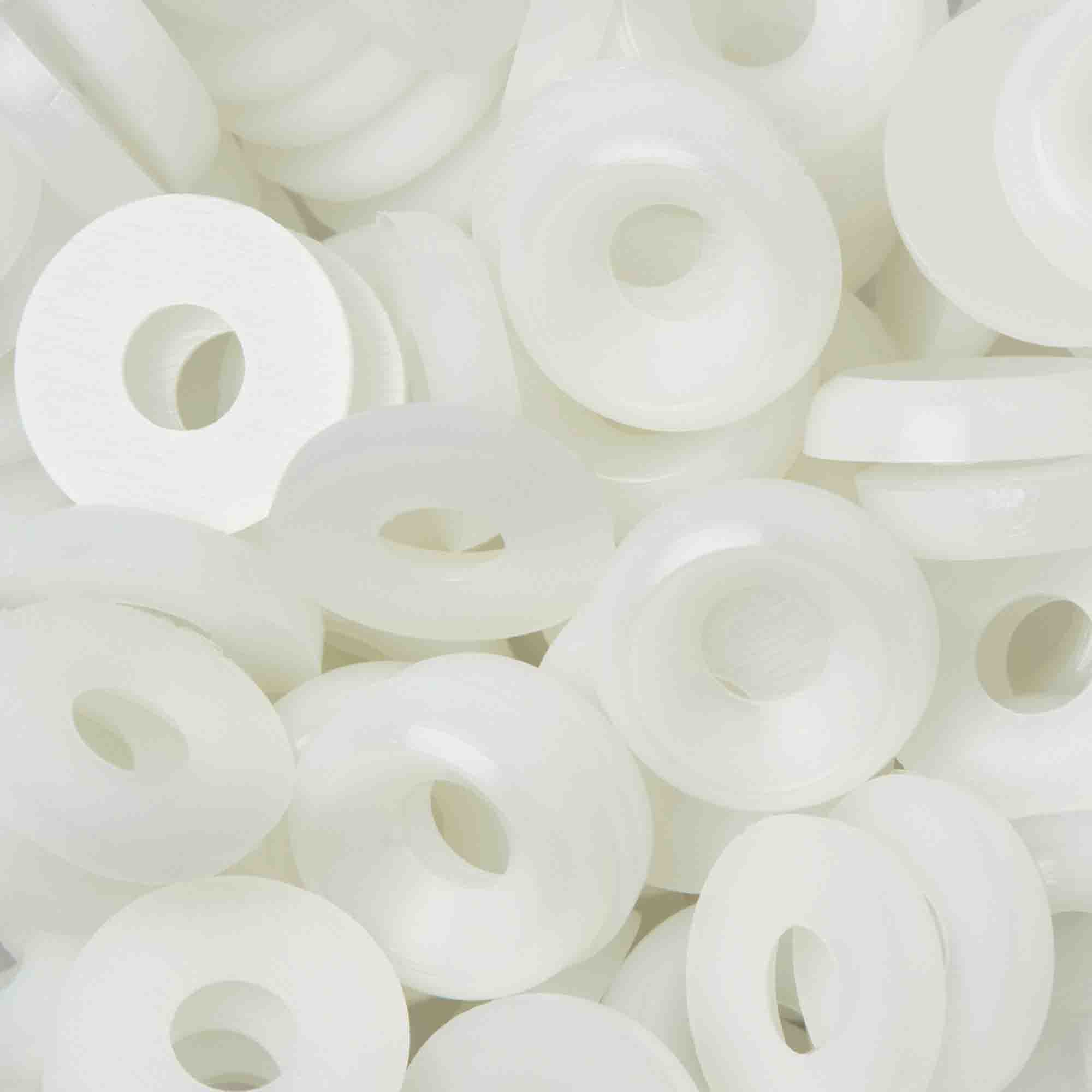

The Polyamide PA6 (Nylon) Rosette Washer, available in sizes with Inner Diameters of 3.3mm to 6.5mm, Outer Diameters of 9mm to 16mm, and Thicknesses of 2.1mm to 3.5mm, is ideal for various applications. PA6 offers excellent toughness, flexibility, and impact resistance, making it suitable for both dry and humid environments. Compared to other polyamide grades, PA6 provides enhanced flexibility while still offering strong mechanical strength, wear resistance, and chemical resistance, making it well-suited for dynamic environments where broad range of properties is key.

Inner Diameter (mm) - 3.3, 4.5, 5.5, 6.5

Outer Diameter (mm) – 9, 11, 14, 16

Thickness (mm) - 2.1, 2.8, 3.3, 3.5

Advantages of Using Polyamide PA6 (Nylon) Rosette Washer

• Excellent impact resistance, providing cushioning and reducing stress on fasteners.
• Good flexibility and toughness, making it suitable for dynamic and high-vibration environments.
• Strong wear resistance, ensuring long-term durability in moving parts or repetitive motion applications.
• Chemical resistance to oils, greases, and solvents, allowing it to perform well in a range of industrial settings.
• Low weight and easy installation, providing versatility in assembly without adding unnecessary bulk.

Applications of Polyamide PA6 (Nylon) Rosette Washer
Polyamide PA6 Rosette Washers are widely used in the automotive industry for distributing loads and reducing stress on fasteners in engine components, body panels, and suspension systems. PA6 washers provide insulation and protection for delicate components in devices subject to vibration. Additionally, in the construction and furniture industries, PA6 rosette washers are employed to spread loads over larger surfaces and prevent damage to softer materials such as wood or plastic. They are also utilised in agricultural equipment, ensuring durability in outdoor and weather-exposed environments.

Polyamide PA6 (Nylon) Rosette Washers, with Inner Diameters ranging from 3.3mm to 6.5mm, Outer Diameters from 9mm to 16mm, and Thicknesses between 2.1mm and 3.5mm, offer a durable solution for a variety of applications. Their superior impact resistance, toughness, and adaptability to both dry and humid conditions make them well-suited for use in industries such as automotive, electronics and construction. PA6 provides excellent wear resistance and chemical durability while remaining lightweight and easy to install, ensuring reliable performance in demanding environments.

The PA6 data sheet is available as a PDF to download below.
