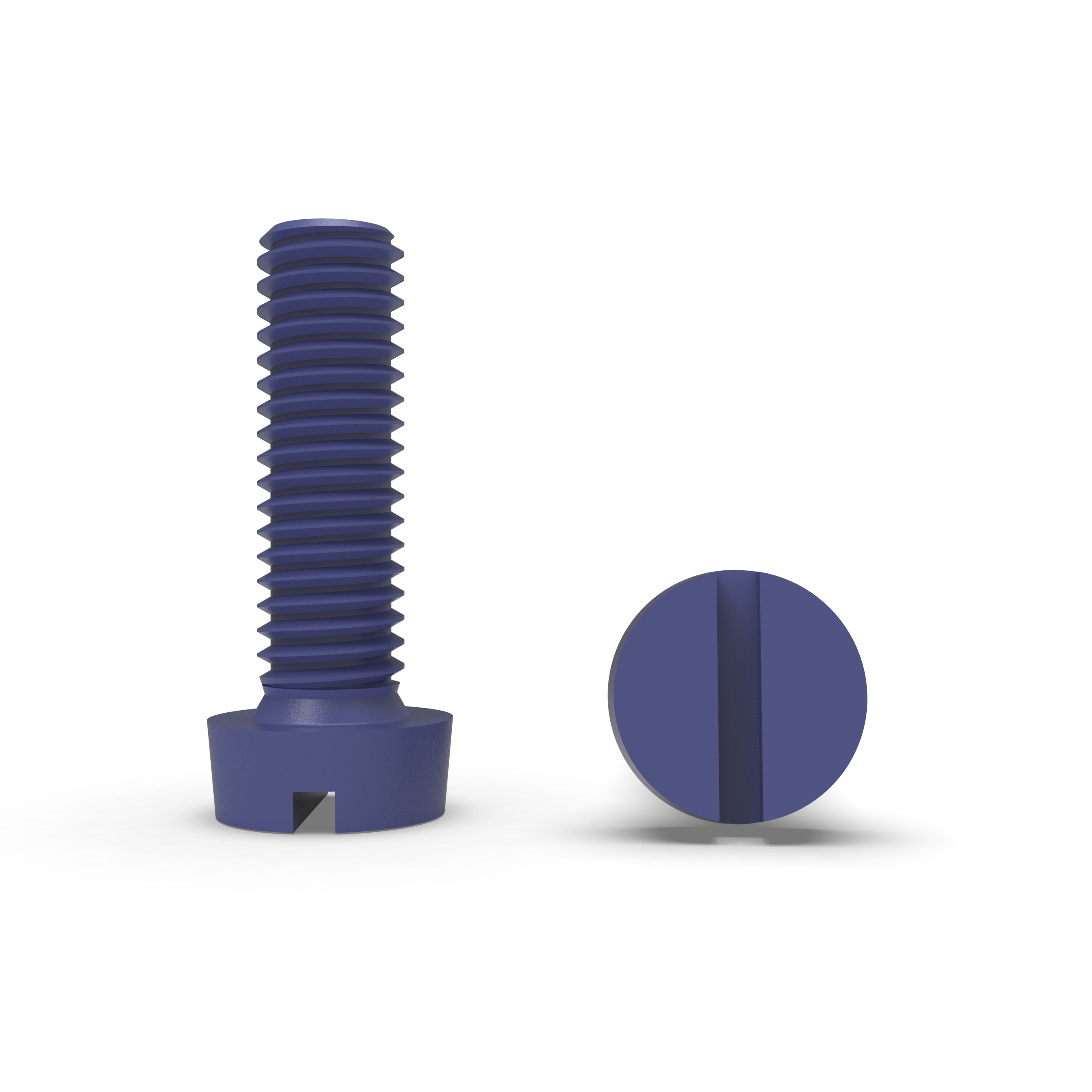

PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84

Manufactured to order.
SKU: PFECCH58
Regular price €5,87 EUR / each Ex. VAT
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PTFE Coated A2-70 Stainless Steel

Measurement System: Metric

Drive Type: Slotted

Blue

260°C

UL94 V0

PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84 conform to the following Standards/Norms:

ISO 1207

DIN 84

CSN 021131

PN 82215

UNI 6107

PTFE Coated Stainless Steel Slotted Cheese Head Screws, available in sizes ranging from M5 to M8 with lengths between 8mm and 100mm. These high-quality screws feature a cylindrical head with a flat top and a single slot, allowing for easy tightening and loosening with a flat-blade screwdriver. Crafted from premium stainless steel and coated with PTFE (Polytetrafluoroethylene), they offer exceptional corrosion resistance, low friction, and enhanced durability. The PTFE coating provides a non-stick surface and excellent chemical resistance, making these screws ideal for applications in harsh environments, woodworking, furniture assembly, and general construction, where reliable and long-lasting fastening solutions are essential.

Metric Size – M5, M6, M8

Length (mm) – 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 100

PTFE (Polytetrafluoroethylene) coated stainless steel combines the benefits of both materials to form a versatile and highly functional composite. Here's an overview of its properties:

  1. Corrosion Resistance: Stainless steel's natural corrosion resistance, thanks to its chromium content, is further enhanced by PTFE, providing excellent protection against rust, chemicals, and environmental degradation.
  2. Low Friction: PTFE's low coefficient of friction ensures smooth movement. When coated on stainless steel, it reduces surface friction, preventing wear and increasing durability.
  3. Chemical Inertness: PTFE is chemically inert and resistant to a wide range of chemicals. Applied to stainless steel, it enhances resistance to acids, bases, solvents, and corrosive substances.
  4. Temperature Stability: PTFE maintains its properties over a broad temperature range (-200°C to +260°C). Combined with stainless steel, it improves the material's ability to withstand extreme temperatures without losing integrity.
  5. Non-Stick Properties: PTFE's non-stick properties prevent substances from adhering to its surface, making it easy to clean and maintain when applied to stainless steel.
  6. Electrical Insulation: PTFE is an effective electrical insulator, preventing electrical conductivity. Coated on stainless steel, it enhances the material's electrical insulation properties.
  7. Biocompatibility: PTFE is biocompatible and inert to biological tissues, making it suitable for medical and pharmaceutical applications. Coated on stainless steel, it improves biocompatibility, reducing the risk of adverse reactions in biological systems.

What is a Slotted Cheese Head Screw?

A slotted cheese head screw is a fastener with a cylindrical head, a flat top, and a single slot across its diameter, allowing for tightening or loosening with a flat-blade screwdriver. These screws are commonly used in applications requiring frequent adjustments or removals, such as woodworking, furniture assembly, and general construction, offering secure and reliable fastening with easy accessibility and adjustment using common hand tools.

The PTFE Coated A2-70 Stainless Steel data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Size Head Height (mm) Across Flats (mm)
M2 3 1.6
M2.5 3.5 1.6
M3 5 2
M4 7 2.8
M5 8 3.5
M6 10 4
M8 13 5.3

Dimension Table

Dimensions for PTFE/Teflon Coated A2-70 Stainless Steel Slotted Cheese Head Screw - DIN 84 in all available sizes are shown according to the product drawing above.

PTFE Coated A2-70 Stainless Steel Datasheet

Follow the link below to view our PTFE Coated A2-70 Stainless Steel data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PTFE Coated A2-70 Stainless Steel Key Properties

  • Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

    Chemical Inertness: Resists a wide range of chemicals, including acids, bases, solvents, and corrosive substances, without degrading or reacting.

    Low Friction: Offers a low coefficient of friction, which reduces friction between surfaces, minimizes wear, and enhances the longevity of both the fastener and the mating parts.

    Temperature Stability: Maintains its properties across a broad temperature range, from -100°C to +260°C, allowing it to perform well in extreme temperature conditions.

  • Non-Stick Properties: Prevents substances from adhering to the surface, making it easy to clean and maintain, and reducing the risk of contamination in sensitive applications.

    Electrical Insulation: Acts as a good electrical insulator, providing resistance to electrical conductivity and enhancing safety in electrical and electronic applications.

    Biocompatibility: Generally biocompatible and inert to biological tissues, making it suitable for use in medical and pharmaceutical applications where contact with biological systems is required.

    Durability: Enhances the mechanical strength and durability of the fastener, providing long-lasting performance even under challenging conditions.

    Smooth Surface Finish: Provides a smooth, even coating that improves the aesthetic appearance and performance of the fastener.

  • Reduced Torque Requirements: The low friction surface reduces the torque needed for installation and removal, facilitating easier handling and assembly.

    Weather Resistance: Withstands exposure to UV radiation, moisture, and other environmental factors without degrading, making it ideal for outdoor and marine applications.

    Chemical Resistance: Enhances resistance to a broad spectrum of aggressive chemicals beyond what the base material alone can handle.

    Enhanced Performance in Sliding and Rotating Applications: Ideal for applications involving sliding or rotating parts due to its low friction and non-stick characteristics.
